Toilet Tank Lid Won't Fit? 7 Reasons a Replacement Sits Wrong

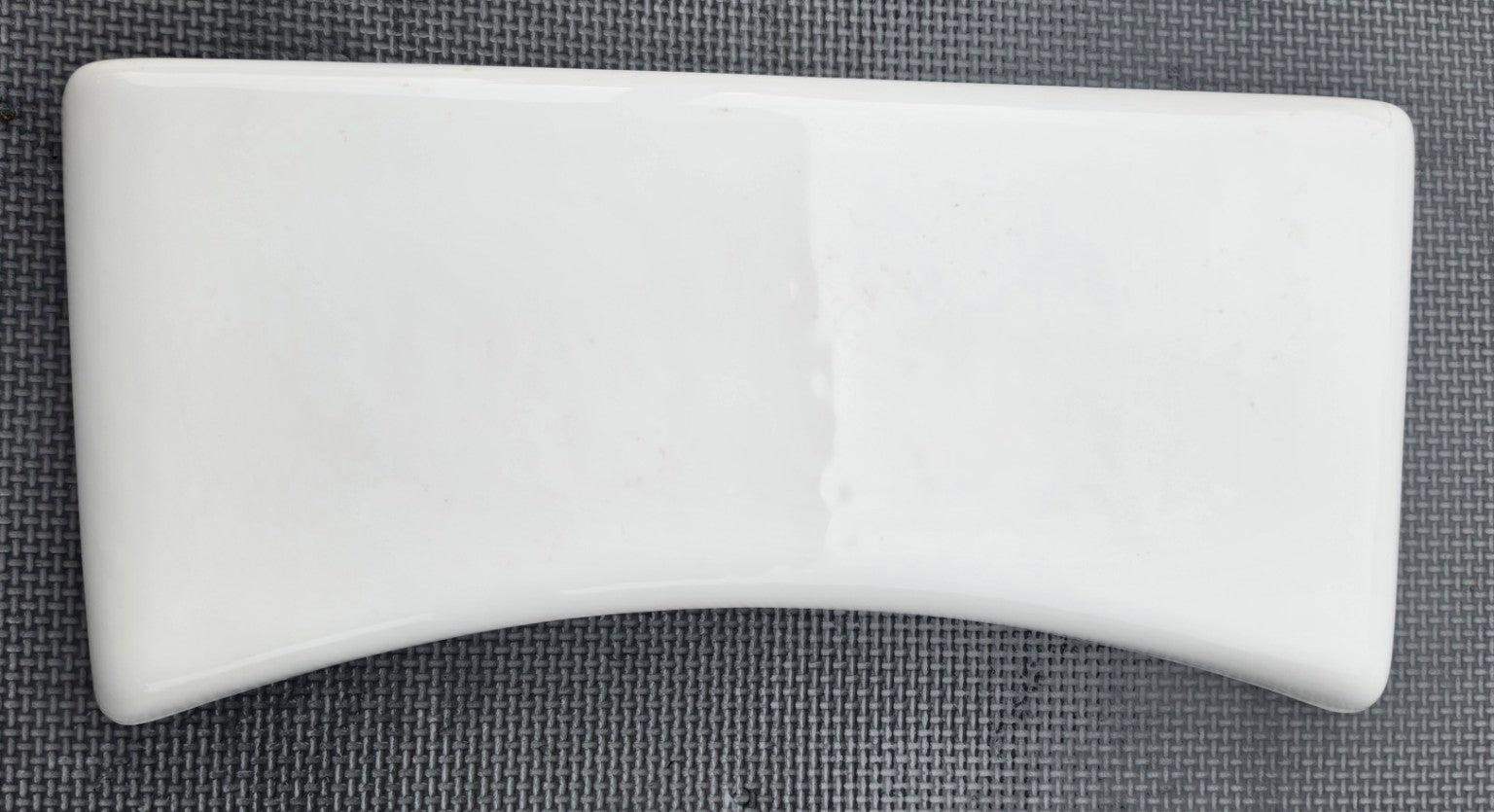

Replacement toilet tank lid fit guide

If a replacement toilet tank lid rocks, overhangs, sits too high, or will not settle onto the tank, do not force it. Matching the approximate length and width is not enough to prove compatibility.

1. The tank model is different

The most common problem is simply the wrong model. Manufacturers often made several tanks with similar proportions. Start with the number inside the tank rather than the visual shape.

2. The outside dimensions match but the underside does not

The inner lip, ceramic feet, ribs, and locating tabs determine where the lid contacts the tank rim. Two lids with nearly identical outside dimensions can have completely different undersides.

3. The front edge has the wrong curve

Some tank lids bow forward, some are almost straight, and others have a complex curved profile. A mismatch can cause the corners to overhang or leave a gap at the center.

4. The side taper is wrong

Many lids are wider at the front and narrower at the rear. Measuring only the maximum width can hide this difference.

5. The corner radius is different

A rounded-corner lid may measure the same as a squarer one but still contact the tank rim incorrectly. Compare all four corners and the rear edge.

6. A dual-flush button or internal part is interfering

On top-button toilets, the replacement lid needs the correct opening and clearance for the flush-button assembly. The wrong button position or underside recess can prevent the lid from sitting flat.

7. The tank or lid itself is damaged

A warped replacement, repaired ceramic, heavy buildup on the tank rim, or damage to the tank can also create a rocking fit. Clean the rim and inspect both pieces before deciding the model is wrong.

What should a correct lid do?

A correct lid should settle naturally onto the tank without being pushed or twisted into position. A small amount of normal ceramic variation can exist, but the cover should be stable and centered.

For more detail, read why same-size toilet tank lids do not always fit and our measurement guide.

If you are starting over with identification, use Find Your Lid or browse the current replacement lid inventory.
